Details
M2M phased array boards are accessible to original equipment manufacturers for integration into third-party systems. Phased array boards for 8:32 and 16:64 multiplexed configurations are available.
When purchasing these M2M hardware (boards or packaged boxes), the dynamic-link libraries (dlls) are provided. They allow accessing and modifying any parameters in the electronics but require a deep knowledge of M2M hardware architecture. This concept is perfect for integrators targeting markets with 15+ systems. M2M boards have already been successfully incorporated into products that range from portable handheld systems to robot-controlled in-line applications.
Multiplexed Architecture OEM
8:32, 8:32 v.2 and 16:64 phased array boards, are multiplexed configurations available to OEM for integration into third-party systems.
OEM-UT 16:64

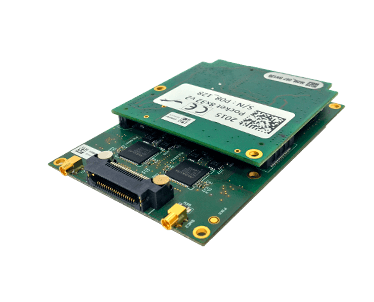

OEM-UT 8:32 v.2
- Option 1: board without probe connector
- Option 2: board with I-PEX connector
- Option 3: board with hypertronix connector
Integration Example
Smart U32
Phased array instrument © TESTIA
D-Lam tool
Phased array ultrasonic instrument to detect delamination
on Carbon or Glass Fiber Reinforced Plastic (CFRP/GFRP) © TESTIA
ThicknessTool
Thickness inspection © TESTIA
