Cypher

What Cypher Delivers

Clarity without compromise
Powerful TFM imaging. Seamless PAUT. All live. All simplified.

Control without confusion
Automated setup. Real-time guidance. Touchscreen intuitive.

Readiness without risk
Rugged housing. Drop-tested. IP65 certified. Built to work when others hesitate.

Full specs include:

• 4x Faster Total Focusing Method (TFM) inspection speed available on the market
• Max configuration: 64:128 phased array channels
• Group support: up to 8 simultaneous TFM groups
• Acquisition techniques: FMC, PWI, PCI, PAUT, TOFD
• Touchscreen: 307mm (12.1-inch) capacitive, glove- and sunlight-ready
• Connectivity: Dual IPEX ports, 1Gbit Ethernet, USB 3.0, Wi-Fi, Bluetooth
• Storage: 2 TB SSD (standard), cloud sync compatible
• Environmental protection: IP65, MIL-STD-810G drop-tested
• Supported formats: Capture™, UltraVision®, CPN file structure
• Optional features: In-field verification tool, remote diagnostics module, customer success program

Made for What You're Up Against

You don't need a smart instrument. You need one that understands the way you work. Cypher was built for teams under pressure—technicians who don't have time to second-guess their setup, re-run scans, or struggle with software. Whether you're onboarding new inspectors or up against a tight shutdown window, Cypher helps you move faster with less friction and greater confidence.

One Platform. Many Applications.

From field to lab. From carbon steel to composites. Cypher gets the inspection done—right the first time.

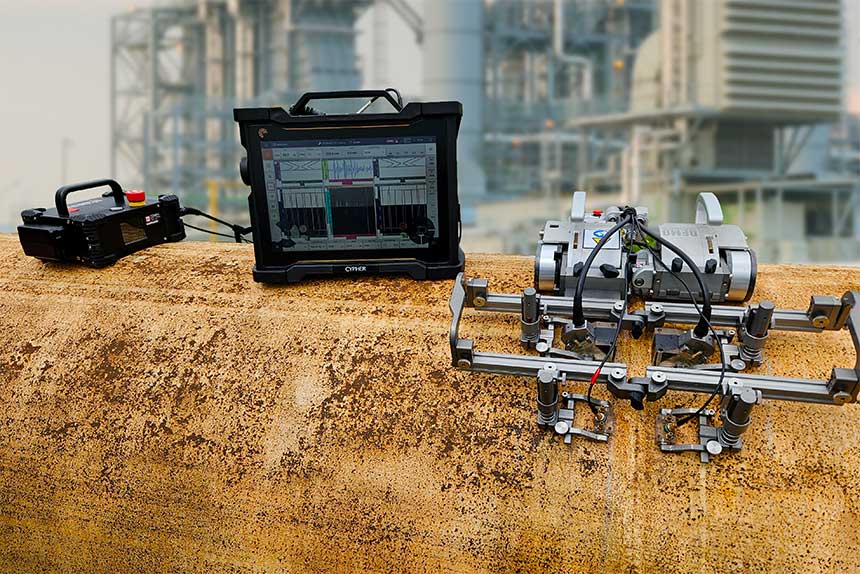

• Carbon Steel Welds & Pipes
• Austenitic Welds
• HTHA Detection
• HIC Inspection
• Corrosion Mapping
• Rail Axle Inspection

Interface, Not Interference

Everything about Cypher's software is built to support—not slow down.

• Guided setup
• Automatic probe and scanner detection
• Live visualization and verification
• Built-in calibration tools
• Complete Software Ecosystem: From viewing to reporting, everything you need is covered via our wide range of software offering for Cypher: From free, perpetual Cypher PC that allows you to view, analyze and report on your findings, to Cypher Companion that unlocks enhanced analysis tools and custom reporting, to the advanced Ultravision Analysis version, unleashing expert analysis tools right at your fingertips.

It's not just easier. It's instinctive.

Download Cypher Software

Backed by Customer Success Program

When the job doesn't stop, neither should your equipment. Eddyfi Technologies' Customer Success Program is designed to keep Cypher calibrated, protected, and ready to deliver—long after deployment. Support options are available to match your specific inspection needs and operational priorities.

Available benefits include:

• Priority technical support with 4-hour first-response time and 24/5 access
• On-demand remote calibration check—no shipping required
• Full access to expert assistance for application tuning, data analysis, and signal interpretation
• Training and credentials through Eddyfi Academy with 10+ annual seats
• Connectivity tools for real-time data sync, remote collaboration, and mobile reporting
• Accidental damage coverage and extended warranty options
• Refurbishment service after calibration to keep instruments looking and working like new
• Multi-year program available (1, 3, or 5 years) with bundled pricing benefits

The future of inspection isn't more complicated. It's just more capable.

Cypher simplifies the deployment of advanced UT techniques without sacrificing performance. With a high-speed, high-resolution TFM engine, real-time PAUT/TOFD/PCI acquisition, and seamless integration across accessories, data systems, and teams, Cypher doesn't just adapt to your workflow—it transforms it.
